Chipcooler HFB44B cools with
a strikingly low thermal resistance
Task
In order to avoid damaging the chip, the FPGA chip may not exceed a pre-defined maximum temperature in all permitted ambient temperatures and operating states.
Solution

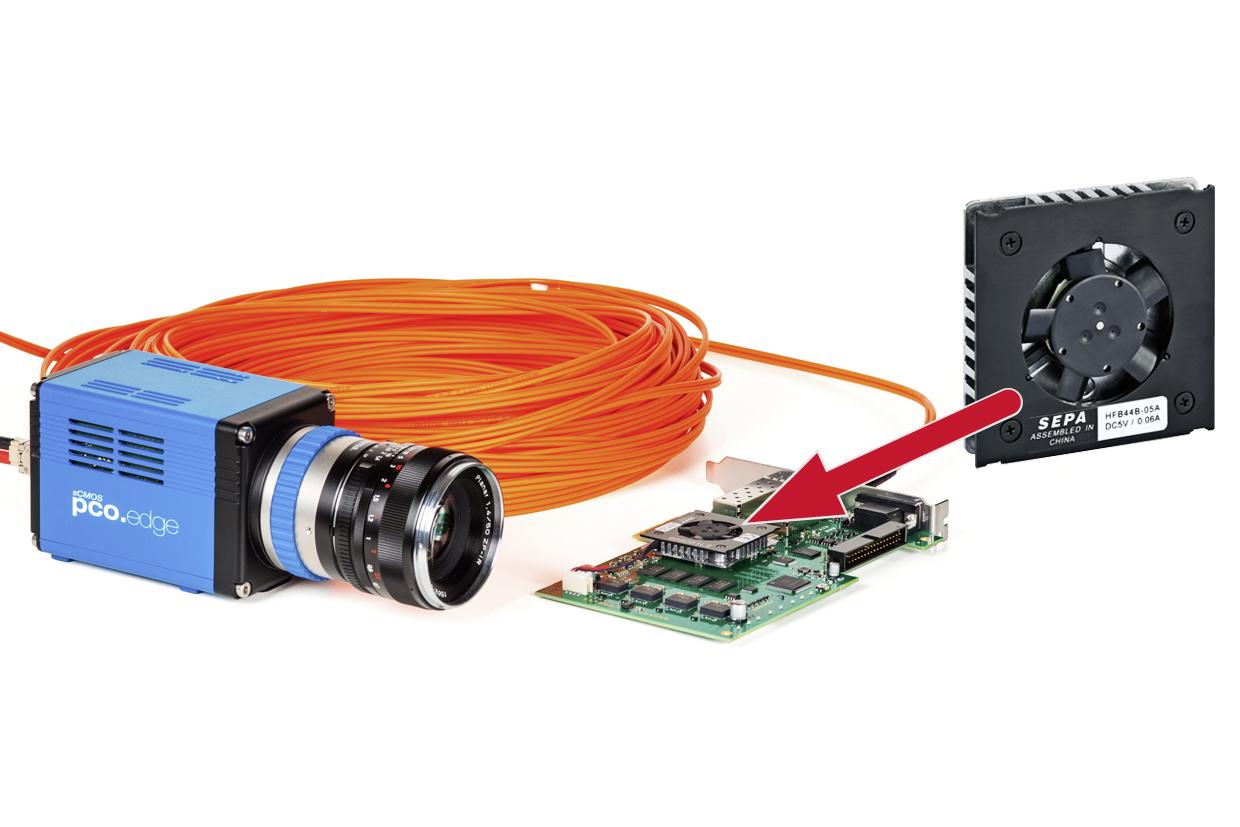

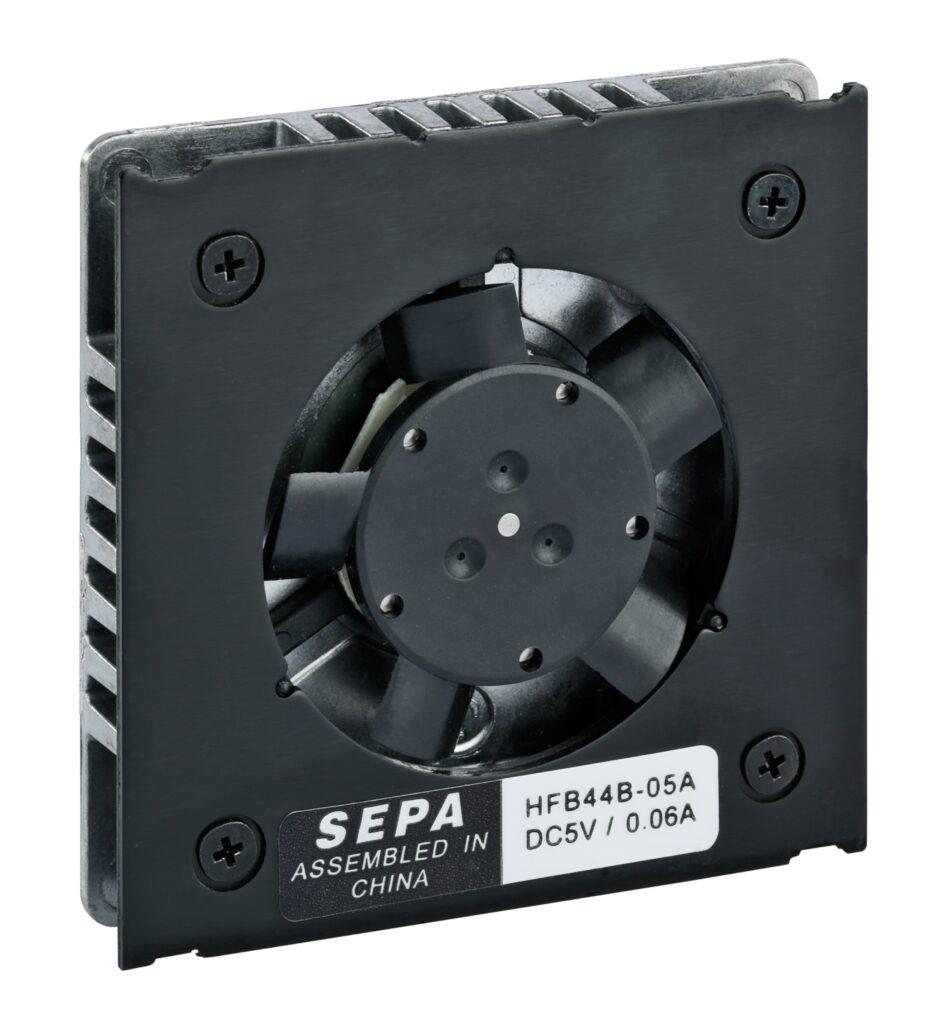

SEPA EUROPE supplies the chip cooler HFB44B with ball bearing, in the dimensions 44x44x7.5 mm. It cools the used FPGA with a strikingly low thermal resistance of 2.4K/W with the aid of the integrated aluminium die-cast aluminium heat sink.
With its compact dimensions and lightweight construction (7 g) it can be accurately positioned to achieve effective cooling. Thanks to innovative techniques, the fan noises can be reduced to an absolute minimum. The fan is equipped with ball bearings and has a lifespan of 350000 hours (MTBF) at 40°C.
It can be tailored to the customers’ needs. Parameters, e.g. size, tacho output, operating voltage or pre-assembled connectors can be customized. The fan is available in 5V and 12V.
SEPA EUROPE is renowned for its high-quality products and the HFB44B is no exception. It was manufactured under strict quality control standards and is designed to provide a long-lasting and reliable cooling performance.
